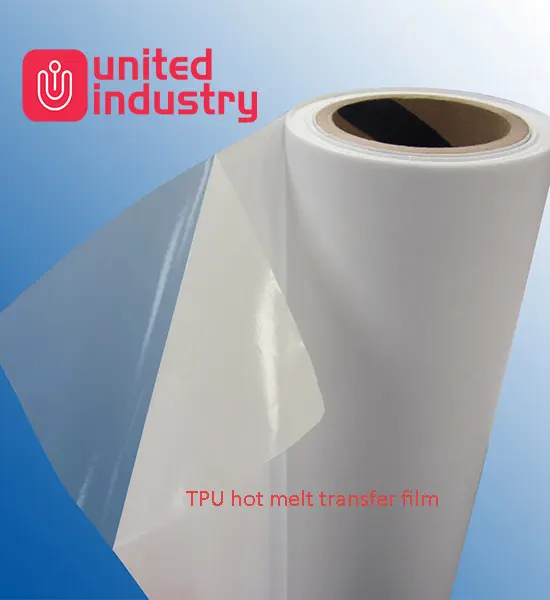

TPU Hot Melt Film UF-2106
UF-2106 is a thermoplastic polyurethane hot melt adhesive film supplied on a release liner, produced by cast extrusion from polyester-based TPU elastomer. At room temperature it is a dry, tack-free solid film; heated above its softening point of about 95°C, it activates under heat and pressure and bonds firmly to the substrate, setting on cooling as the laminate cools. The film delivers high bond strength, outstanding elasticity, excellent water resistance and good low-temperature flexibility, with a wide, forgiving pressing window of 110–140°C. It is the workhorse format for scalable heat-press lamination of textile fabrics, shoe materials, automotive interiors and many other flexible substrates.
Key Features
- Supplied on a release liner — keeps the film clean and protected until pressing; solvent-free lamination
- High bond strength with outstanding elasticity — the bond stretches with elastic fabrics instead of cracking
- Proven wash resistance — no delamination and no blistering after 50 domestic wash cycles at 40°C
- Waterproof and non-permeable — doubles as a sealing layer in waterproof constructions
- Low softening point (approx. 95°C) — moderate pressing temperatures protect heat-sensitive fabrics
- Wide processing window (110–140°C) — tolerant of thickness and equipment variation on production lines
Technical Specifications
| Property | Value |
|---|---|
| Main component | Polyester-based thermoplastic polyurethane (TPU) |
| Appearance | Milky translucent |
| Thickness | 0.05-0.30 mm (standard 0.05 / 0.08 / 0.10 / 0.12 / 0.15 mm, customizable) |
| Width | 20-1520 mm, slitting on request |
| Roll length | 100 m / 200 m, customizable |
| Density | 1.18-1.22 g/cm3 (23°C) |
| Hardness | Shore A 71-73 |
| Softening point | approx. 95°C (ring and ball) |
| Melt flow rate | 10-25 g/10 min (150°C, 2.16 kg) |
| Wash resistance | No delamination, no blistering (40°C, 50 home laundering cycles) |
| Packaging | PE-sealed rolls in cartons or on pallets |
Recommended Pressing Conditions
| Parameter | Value |
|---|---|
| Pressing temperature | 110-140°C (adjust to fabric and film thickness) |
| Pressure | 0.2-0.4 MPa (flat press or continuous laminator) |
| Pressing time | 10-20 s |
| Open time | approx. 12 min (surface tack reference) |
| Cooling | Natural cooling to room temperature before handling |
Cut the film to size, heat-press according to the conditions above, and allow it to cool and set. The release liner can be removed before or after pressing, as required by your process. Always run a small trial to optimise temperature, pressure and time before volume production.
Applications
UF-2106 bonds wherever flexible materials must be joined strongly, thinly and invisibly. In apparel, it laminates knitted fabrics, polyester and fleece for outerwear and sportswear. In footwear, it bonds mesh with lining fabrics and builds flyknit uppers. Beyond garments and shoes, it serves automotive interiors, bags and furniture fabrics, and bonds leather, wood, and plastics such as TPU, PVC, PET and PA. It is also used in reflective materials and filter media, and in any double-layer or multi-layer lamination of flexible substrates where a glue line must stay thin, soft and washable.
Why Choose Us
Shanghai United Industry Co., Ltd, founded in 2017, is a specialized manufacturer and exporter of hot melt adhesives — powders, films and polyamide grades — supplying customers worldwide. Every batch passes in-house checks for key parameters before shipment, so what you approve in sampling is what you receive in bulk production. We provide free technical consultation on pressing temperature, pressure and dwell time, and support each customer from first sample through mass production. Widths are slitted to order from 20 mm upward, and export packing in sealed PE bags with cartons or pallets makes us an easy partner for both trading companies and end users.
Frequently Asked Questions
Does the film come with a release liner?
Yes. UF-2106 comes with a release liner that protects the adhesive film, making it easy to use for single-side heat-press lamination, or to cut into any shape as required.
How wash-resistant is the bond?
The bond survives 50 domestic laundering cycles at 40°C with no delamination and no blistering, which covers the normal service life of garment and shoe products.
Can I order custom widths and thicknesses?
Yes. Standard thicknesses are 0.05, 0.08, 0.10, 0.12 and 0.15 mm within a 0.05-0.30 mm range, and widths are slitted on request from 20 to 1520 mm. Roll length is 100 or 200 m, customizable.
What is the minimum order quantity (MOQ)?
There is no fixed MOQ — order quantities are discussed according to your needs. Trial orders and small test batches are welcome; contact us with your target application and annual volume for a proposal.
How should the film be stored?
TPU film absorbs moisture, so keep it sealed in its PE bag in a cool, dry place away from light, below 30°C and 60% RH. Shelf life is 12 months in the original unopened packaging; use soon after opening.
Do your products meet quality or certification requirements?
Our products can be tested and certified according to customer requirements, for example SGS test reports on key parameters. Please specify the standard or test items you need when enquiring.
